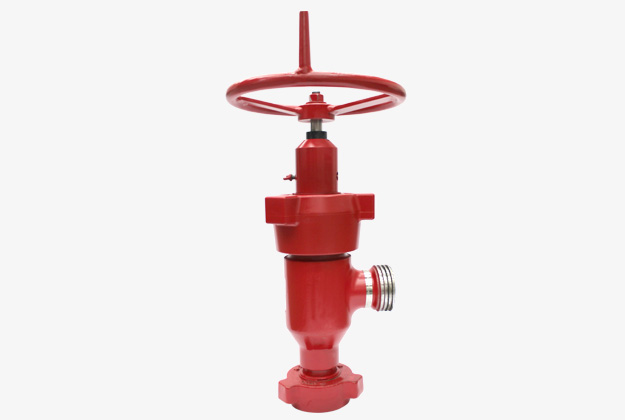

Chock Valve

Description

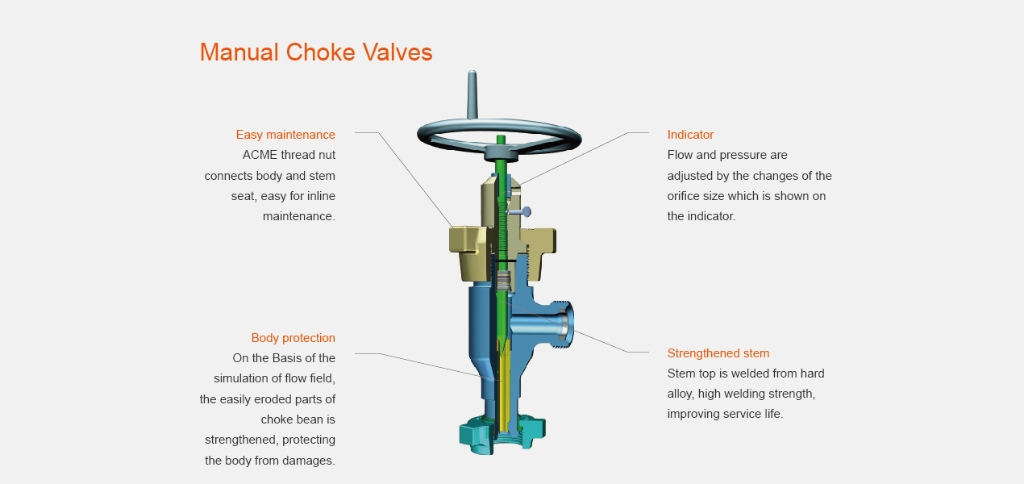

Choke Valves are mainly used to adjust flow and pressure in the pipeline by changing the choke area, with union connections on the ends. Jereh Choke Valves can be divided into manual and hydraulic.

Features

  • Special repair kit is available for easy maintenance.

  • Key components adopt hard alloy to increase service life.

  • Surfaces vulnerable to abrasion are handled by special technology.


Specifications

Rated Working Pressure 69.0MPa~138.0Mpa
           (10,000psi~20,000psi)
Nominal Size 2″, 3″
Temperature Rating -29℃~121℃(PU), -46℃~121℃ (LU) -20℉~250℉ (PU),-50℉~250℉(LU)
Service Standard, Sour Gas
Application Fracturing, Cementing, Acidizing, Testing Lines
