Electric Frac Pumper

Description

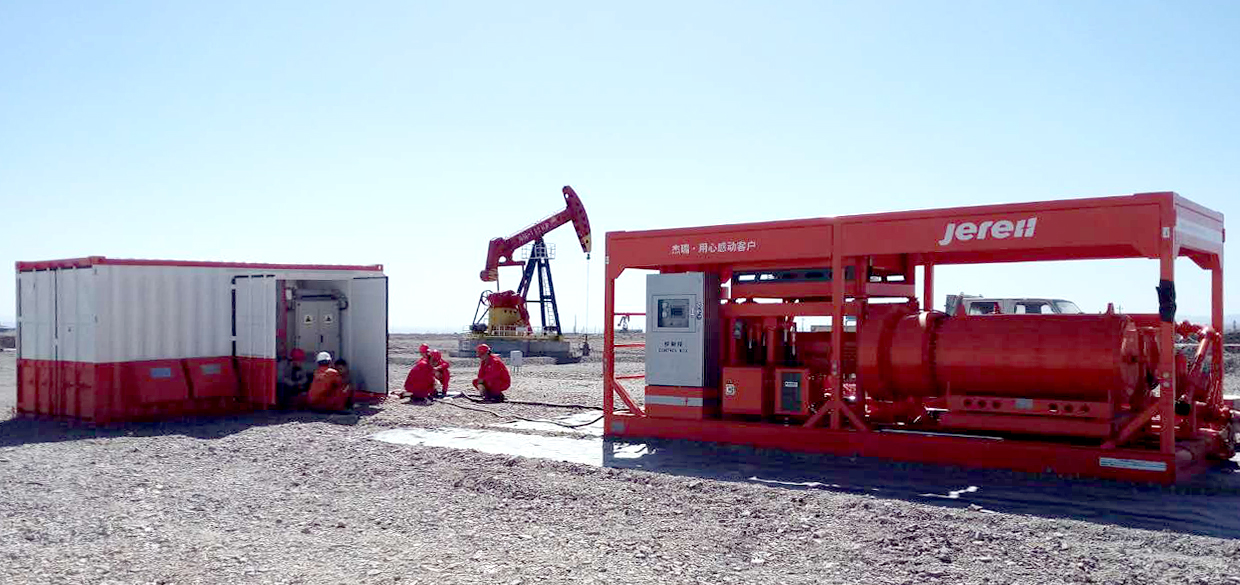

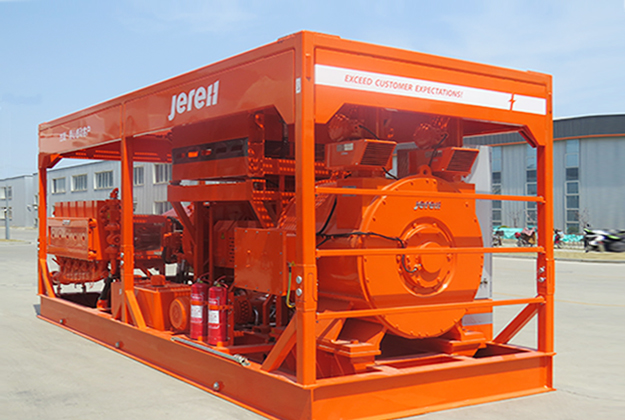

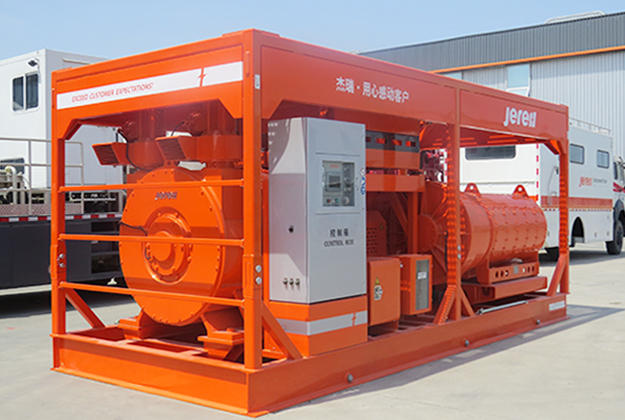

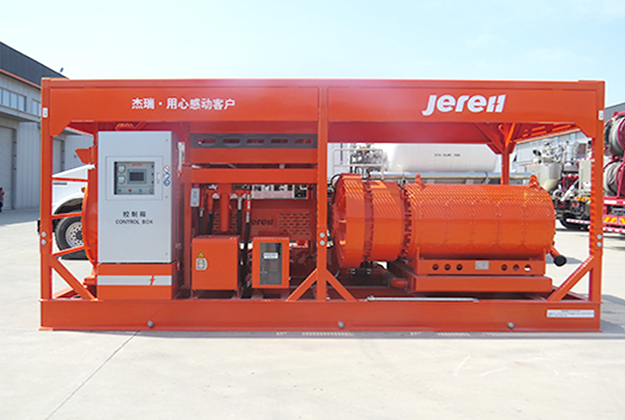

Faced with challenges such as the increasing rigorous emission standards, Jereh has innovated electric frac pumper. The electric frac pumper is equipped with Jereh self-developed 5000QPN quintuplex plunger pump and robust electric motor and frequency converter to withstand hash environments in oil & gas fields. Jereh electric frac pumper effectively reduces site footprint, frees more labors and saves total operational cost, helping solve the bottleneck of traditional diesel-driven fracturing units.

Features

  • Smaller in size and lighter in weight for easier mobilization and demobilization;

  • The noise level is no higher than 85 dB at a distance of 1 m from the unit;

  • JR5000QPN plunger pump is dedicated design for shale gas jobs of large displacement and high pressure.

Specifications

Overall Unit Parameters


Model

YLQ105-5000D

Plunger Size

4.5”

5”

Max. Working Pressure

15,000 psi (103.5 MPa)

12,800 psi (88 MPa)

Max. Flowrate

575 gpm (2.2 m³/min)

709 gpm (2.7 m³/min)

Voltage

3 ~ 15 kV

Frequency

50 / 60 Hz

Weight

59,525 lbs (27,000 kg)

Overall Dimensions

249×100×99 inch (6,300×2,550×2,500 mm)


Electric Motor


Type

Variable Frequency AC Asynchronous Motor

Power

3,350 kW

Type of Duty

S1

Voltage

3,300 VAC

Frequency

1~70 Hz

Cosφ

0.926

IP Grade

IP23

Temperature Rise

80K

Insulation Class

H

Cooling Mode

Forced Air-cooling

Weight

7,000 kg
