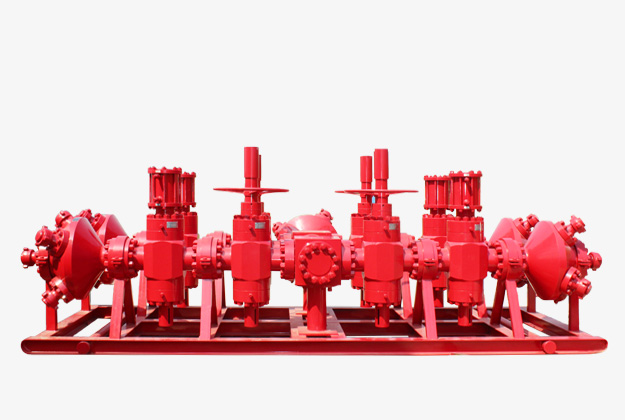

Frac Diverting Manifold


Frac Diverting Manifold is mainly used for multiple well fracturing, composed of frac valve, frac head, spacer spool, cross, six-way cross, skid, etc. It features multiple passages and several outlets through the frac head. Passages open/close is controlled by frac valve, suitable for continuous frac operation of multiple wells.

We can also provide customized products depending on customer needs.


  • Pressure containing and pressure controlling parts are forged steel, resistant to erosion and corrosion.

  • Large bore design allows large displacement and quick fracturing operation.

  • Integral skid delivers strong shock-proof capability and easy connection.

  • Many configurations including two-passage, three-passage, four-passage, H shape, straight shape and L shape are available for various layout.

  • Multiple passages design and chain operation increase fracturing efficiency and reduce cost.

  • Full-bore, two-way seal and spring energized seal extend service life.

  • Ball screw design reduces operating torque.

  • Hydraulic valve and hydraulic station are available for remote control.


Bore 4 1/16", 5 1/8", 7 1/16"
Working Pressure 10,000~15,000psi
Temperature Level L, P, U
Material Grade DD, EE
Manufacturing Level PSL3
Performance Level PR1, PR2
Standards API SPEC 6A , API SPEC 16C
