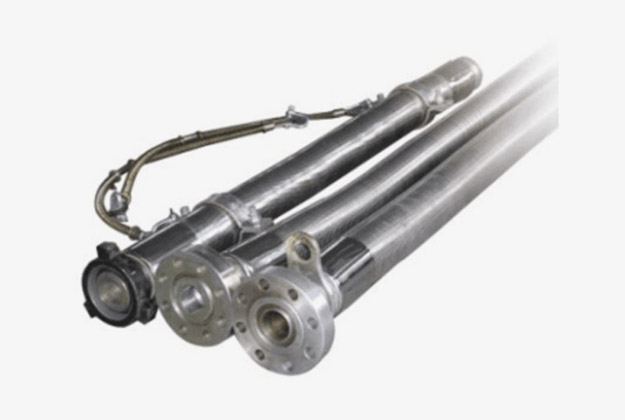

Applicability: Flexible line connection in the choke manyfold and kill manyfold system.
Temperature Range: Ambient temperature -20℃~+121℃.
Tube(lining): Nitrile rubber,featuring oil resistance, abrasion resistance, acid & alkali resistance.
Reinforcement: 2-8 layers of single high strength steel wire spiral.
Cover: neoprene,featuring oil resistance, abrasion resistance,Low temperature,weather proof and anti-aging.
Outer protective layer：Stainless steel sheathed.
Coupling type:Welded or integral union, flange or clamp connection form, or upon customers' requirement.
Standard：API Spec 16C
API certification: API 16C-0141
in. mm I.D |
mm O.D |
MPa（psi） W.P |
MPa（psi） T.P |
m Min Bending Radius |
㎏/m Weight |
|---|---|---|---|---|---|
| 2 50.8 | 99 | 34.5（5000） | 69.0（10000） | 1.2 | 15 |
| 2½ 63.5 | 115 | 1.2 | 19.6 | ||
| 3 76.2 | 133 | 1.6 | 24.9 | ||
| 3½ 89.9 | 146 | 1.7 | 27.8 | ||
| 4 101.6 | 169 | 1.7 | 41.6 | ||
| 2 50.8 | 108 | 69.0（10000） | 103.4（15000） | 1.4 | 19.2 |
| 2½ 63.5 | 130 | 1.4 | 30.2 | ||
| 3 76.2 | 146 | 1.7 | 35 | ||
| 4 101.6 | 183 | 1.8 | 55.3 | ||
| 2 50.8 | 118 | 103.4（15000） | 155.3（22500） | 1.6 | 26.2 |
| 2½ 63.5 | 146 | 1.6 | 41.8 | ||
| 3 76.2 | 160 | 1.8 | 50.6 |
